Atlas Copco
TEX 626 / 830 / 1133 Rivet Buster
Atlas Copco TEX 626, TEX 830 and TEX 1133 pneumatic rivet busters are offered with closed R handles or open RP handles. Select the exact model for your quote.
These tools are intended for driving and removing rivets and for demolition applications including concrete, bridge decks, tanks and horizontal work.
The manufacturer lists a 1/2-inch NPT hose inlet and US claw coupler 9246020439. Confirm the coupling and steel arrangement when ordering.

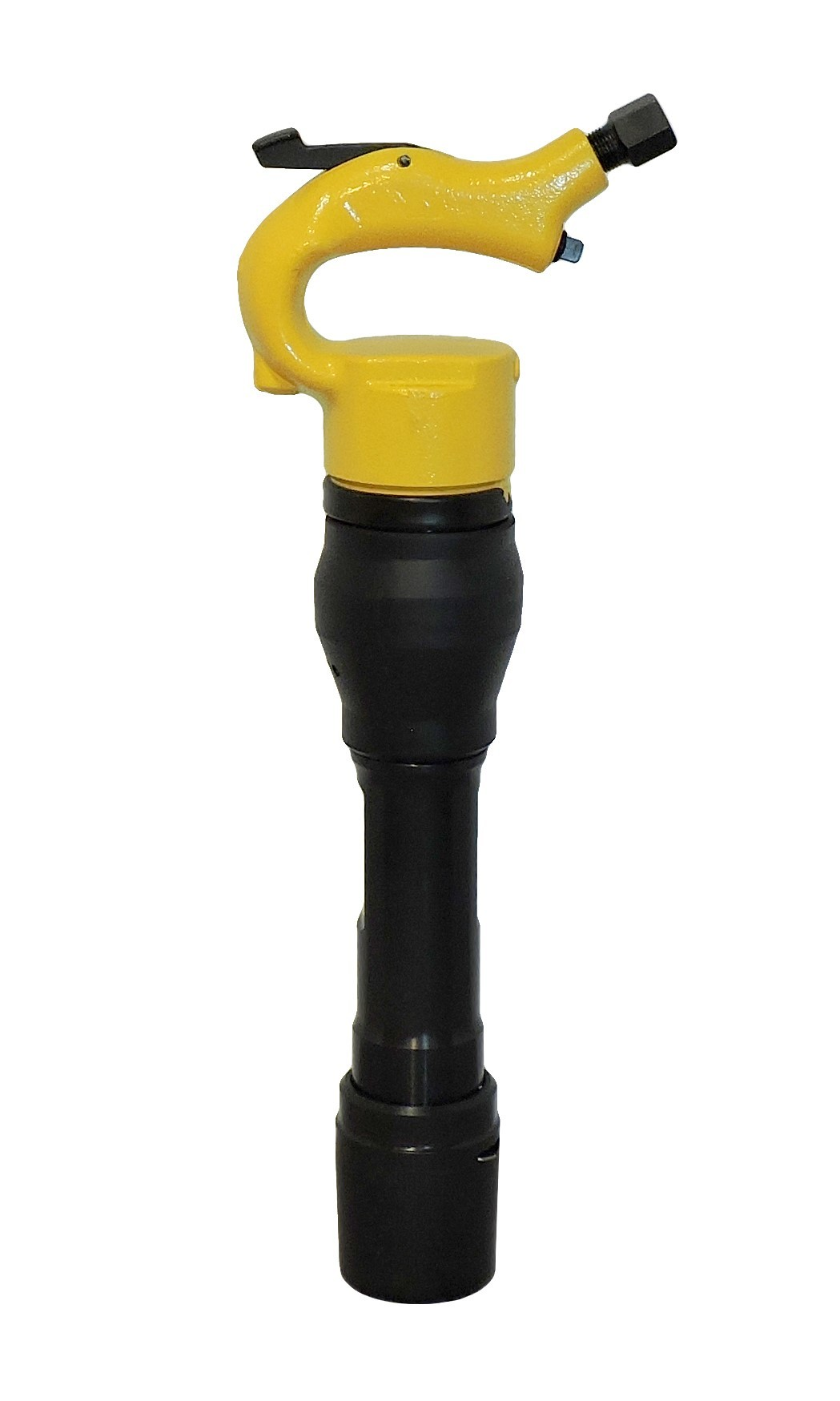

Manufacturer family photographs show the TEX 830 R and TEX 1133 RP. Other configurations differ in handle and length.
Complete tool: TEX 626 RTool part # 9245 9989 81
6-inch stroke; closed R handle
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | TEX 626 R | TEX 626 RP | TEX 830 R | TEX 830 RP | TEX 1133 R | TEX 1133 RP |
|---|---|---|---|---|---|---|
| Stroke (inches) | 6 | 6 | 8 | 8 | 11 | 11 |
| Handle type | Closed | Open | Closed | Open | Closed | Open |
| Weight (lbs) | 26 | 26 | 30 | 30 | 33 | 33 |
| Length (inches) | 20.5 | 20.5 | 22.5 | 22.5 | 25.5 | 25.5 |
| Air consumption (CFM) | 44 | 44 | 44 | 44 | 50 | 50 |
| Impact rate (BPM) | 1200 | 1200 | 1140 | 1140 | 1200 | 1200 |
| Hose inlet | 1/2" NPT | 1/2" NPT | 1/2" NPT | 1/2" NPT | 1/2" NPT | 1/2" NPT |
Specification TEX 626 R
- Stroke (inches)
- 6
- Handle type
- Closed
- Weight (lbs)
- 26
- Length (inches)
- 20.5
- Air consumption (CFM)
- 44
- Impact rate (BPM)
- 1200
- Hose inlet
- 1/2" NPT
Specification TEX 626 RP
- Stroke (inches)
- 6
- Handle type
- Open
- Weight (lbs)
- 26
- Length (inches)
- 20.5
- Air consumption (CFM)
- 44
- Impact rate (BPM)
- 1200
- Hose inlet
- 1/2" NPT
Specification TEX 830 R
- Stroke (inches)
- 8
- Handle type
- Closed
- Weight (lbs)
- 30
- Length (inches)
- 22.5
- Air consumption (CFM)
- 44
- Impact rate (BPM)
- 1140
- Hose inlet
- 1/2" NPT
Specification TEX 830 RP
- Stroke (inches)
- 8
- Handle type
- Open
- Weight (lbs)
- 30
- Length (inches)
- 22.5
- Air consumption (CFM)
- 44
- Impact rate (BPM)
- 1140
- Hose inlet
- 1/2" NPT
Specification TEX 1133 R
- Stroke (inches)
- 11
- Handle type
- Closed
- Weight (lbs)
- 33
- Length (inches)
- 25.5
- Air consumption (CFM)
- 50
- Impact rate (BPM)
- 1200
- Hose inlet
- 1/2" NPT
Specification TEX 1133 RP
- Stroke (inches)
- 11
- Handle type
- Open
- Weight (lbs)
- 33
- Length (inches)
- 25.5
- Air consumption (CFM)
- 50
- Impact rate (BPM)
- 1200
- Hose inlet
- 1/2" NPT
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| TEX 626 R | 6-inch stroke; closed R handle | 9245 9989 81 | |
| TEX 626 RP | 6-inch stroke; open RP handle | 9245 9986 62 | |
| TEX 830 R | 8-inch stroke; closed R handle | 9238 9817 75 | |
| TEX 830 RP | 8-inch stroke; open RP handle | 9246 0206 59 | |
| TEX 1133 R | 11-inch stroke; closed R handle | 9238 9817 85 | |
| TEX 1133 RP | 11-inch stroke; open RP handle | 9246 0206 60 |
