Chicago Pneumatic
Model: 0009 Series
Rock Drill

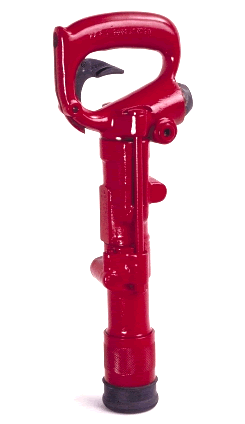

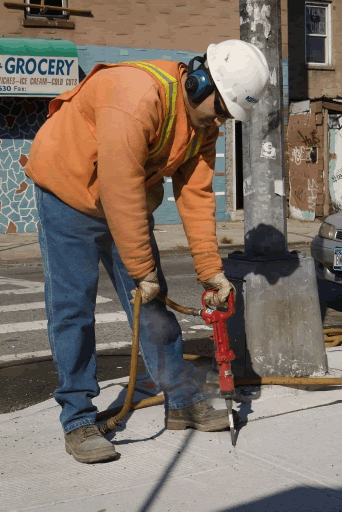

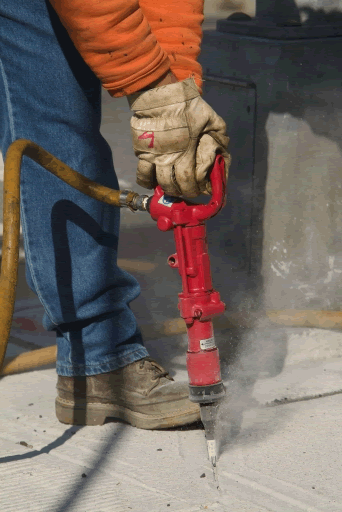

The CP 0009 rotary hammer is designed for a wide variety of construction and maintenance applications such as driving or setting masonry anchors and drilling holes in concrete, bricks or rock. As a hammer, these tools can be used for chipping, scarifying, scaling and cleaning welds.
- Excellent power-to-weight ratio helps drill holes faster and easier than comparable electric rotary hammers
- Built-in oiler provides continuous lubrication
- Teasing throttle for precise control
- Rotation release button converts tool to a hammer
- Cushioned piston for smooth operation, long life
- 'Hushed Power' muffler available to reduce noise
| Model | Product Detail | Part Number |  |
| CP 9A | 3/4" Round x 3-3/4" w/ 4 Slots | T022083 | |
| CP 9AC | 3/4" Round x 3-3/4" w/ 4 Slots | Z0027413 | |
| CP 9F | Standard "Spline" Bit (call for drill bits for this tool) |
T022511 |
| Description | CP 0009 A |
| Part no | T022083 |
| Weight (lb) | 8 |
| Length incl. drill steel retainer (inch) | 14-3/4 |
| Chuck Size (inch) | Round 3/4 x 3-3/4 |
| Air Consumption (cfm) | 20 |
| Air Inlet (inch) | 3/8 NPTF |
| Drill Rate (inch/min) | 4 |
| Impact frequency (blows/min) | 3420 |
| Muffler Included | No |
| Retainer Type | Quick-change |
| Rotation Speed (rpm) | 189 |
| Comments | Rotation release button |
| Max Drilling Diameter (inch) | 0.98 |
| Max Drilling Depth (inch) | 17.7 |
| Vibration level 3 axes (ISO 20643) (m/sec2) | 20.2 (breaking) 21.2 (drilling) |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | |
| Sound pressure level (ISO 11203) (Lp, r = 1m) |
| Description | CP 0009 AC |
| Part no | Z0027413 |
| Weight (lb) | 8.8 |
| Length incl. drill steel retainer (inch) | 14-3/4 |
| Chuck Size (inch) | Round 3/4 x 3-3/4 |
| Air Consumption (cfm) | 20 |
| Air Inlet (inch) | 3/8 NPTF |
| Drill Rate (inch/min) | 4 |
| Impact frequency (blows/min) | 3420 |
| Muffler Included | No |
| Retainer Type | Quick-change |
| Rotation Speed (rpm) | 189 |
| Comments | No-rotation release button |
| Max Drilling Diameter (inch) | 0.98 |
| Max Drilling Depth (inch) | 17.7 |
| Vibration level 3 axes (ISO 20643) (m/sec2) | 20.2 (breaking) 21.2 (drilling) |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | |
| Sound pressure level (ISO 11203) (Lp, r = 1m) |
| Description | CP 0009 F |
| Part no | T022511 |
| Weight (lb) | 9 |
| Length incl. drill steel retainer (inch) | 14-3/4 |
| Chuck Size | Spline |
| Air Consumption (cfm) | 20 |
| Air Inlet (inch) | 3/8 NPTF |
| Drill Rate (inch/min) | 4 |
| Impact frequency (blows/min) | 3420 |
| Muffler Included | No |
| Retainer Type | Quick-change |
| Rotation Speed (rpm) | 189 |
| Comments | Rotation release button SDS adapter: R139413 |
| Max Drilling Diameter (inch) | 0.98 |
| Max Drilling Depth (inch) | 17.7 |
| Vibration level 3 axes (ISO 20643) (m/sec2) | 20.2 (breaking) 21.2 (drilling) |
| Sound power level guaranteed (2000/14/EC) (Lw, dB(A)) | |
| Sound pressure level (ISO 11203) (Lp, r = 1m) |
|
"C9" Series 1 piece Plug Bits
|
||
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | ||
| Drill Depth | Drill Diameter | "C9" Series |
| Inches | Inches | 3/4" Round Shank with 4 Slots |
| Part Number | ||
| 8" | 5/16" Solid | C9-1 |
| 8" | 3/8" Solid | C9-2 |
| 8" | 7/16" Solid | C9-3 |
| 8" | 15/32" Solid | C9-4 |
| 6" | 1/2" | C950-6 |
| 10" | C950-10 |
|
| 8" | 5/8" | C958-8 |
| 12" | C958-12 |
|
| 18" | C958-18 |
|
| 8" | 3/4" | C975-8 |
| 12" | C975-12 |
|
| 18" | C975-18 |
|
| 8" | 7/8" | C978-8 |
| 12" | C978-12 |
|
| 18" | C978-18 |
|
| 8" | 1" | C9100-8 |
| 12" | C9100-12 |
|
| 18" | C9100-18 |
|
| 24" | C9100-24 |
|
| 18" | 1-1/16" | C9116-18 |
| 24" | C9116-24 |
|
| 8" | 1-1/8" | C9118-8 |
| 12" | C9118-12 |
|
| 18" | C9118-18 |
|
| 8" | 1-1/4" | C9125-8 |
| 12" | C9125-12 |
|
| 18" | C9125-18 |
|
| 8" | 1-3/8" | C9138-8 |
| 12" | C9138-12 |
|
| 18" | C9138-18 |
|
| 8" | 1-1/2" | C9150-8 |
| 12" | C9150-12 |
|
| 18" | C9150-18 |
|
| 8" | 1-5/8" | C9158-8 |
| 12" | C9158-12 |
|
| 8" | 1-3/4" | C9175-8 |
| 12" | C9175-12 |
|
| Longer Lengths Available for Most Tools - Call: 800‐241‐9669 | ||
0009 Series Safety Manual
