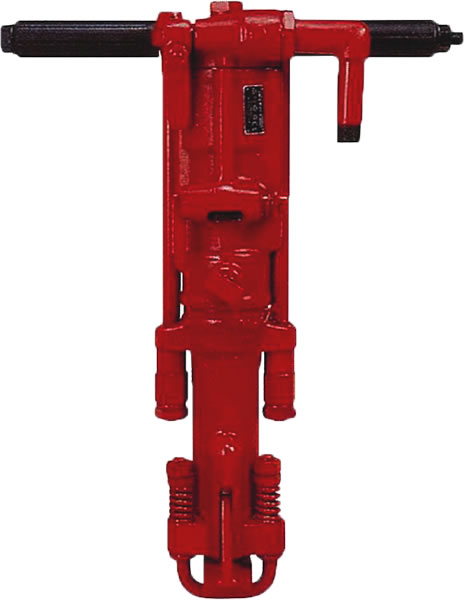

TS55 Rock Drill
Manufactured by Toku and offered through TAMCO.
A heavy-duty rock drill intended for larger-diameter bits and deeper drilling jobs.
Complete tool: TS55Tool part # TS55
TS55. Shank Size: 7/8" x 3-1/4" 7/8" x 4-1/4" 1" x 4-1/4". Confirm the required fit before ordering.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.
Technical Specs
| Specification | TS55 |
|---|---|
| Shank Size | 7/8" x 3-1/4" 7/8" x 4-1/4" 1" x 4-1/4" |
| Piston Stroke | 2-9/16" (65mm) |
| Piston Diameter | 2-5/8" (66.6mm) |
| Impact Rate Speed | 1,800 BPM 200 RPM |
| Weight | 59.4 lbs (27kg) |
| Overall Length | 22-3/8" (568mm) |
| Air Consumption | 91.81 CFM |
| Air Inlet Thread | 3/4" NPT |
| Hose Size | 3/4" (19mm) |
| Maximum Air Pressure | 90 PSI |
Complete tool configurations
Match the model, shank and part number. These are complete tools, not replacement parts.
| Model | Shank / Details | Part Number | Quote |
|---|---|---|---|
| TS55 | TS55. Shank Size: 7/8" x 3-1/4" 7/8" x 4-1/4" 1" x 4-1/4". Confirm the required fit before ordering. | TS55 |
