E-Z Drill
110B Drill Rig

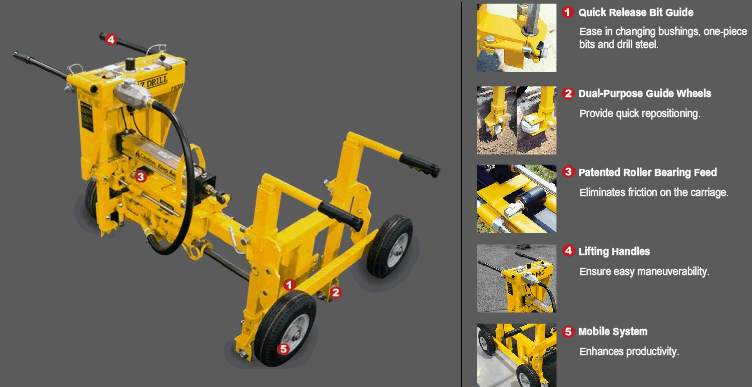

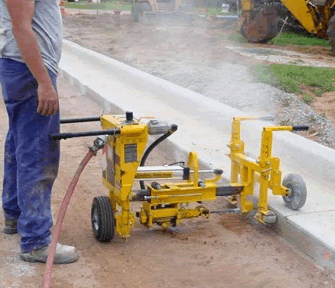

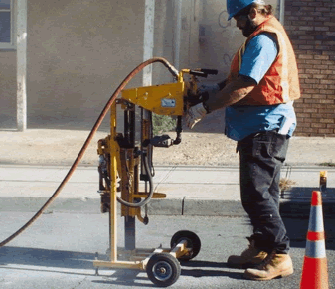

This downsized version of the Model 210B, the Model 110B utilizes the CP 22 rock drill and will drill 5/8 - 2 in. (15.9 mm to 50.8 mm) diameter hole 12 in. (304.8 mm) deep in a 36 in. (914.4 mm) opening. Standard features include mobile system for faster repositioning and dual-purpose guide wheels that run along the face of the slab while drilling, and can also be turned down for easy transport around the job. Used primarily as a horizontal unit, the Model 110B can be converted for vertical drilling with the optional vertical conversion kit.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.

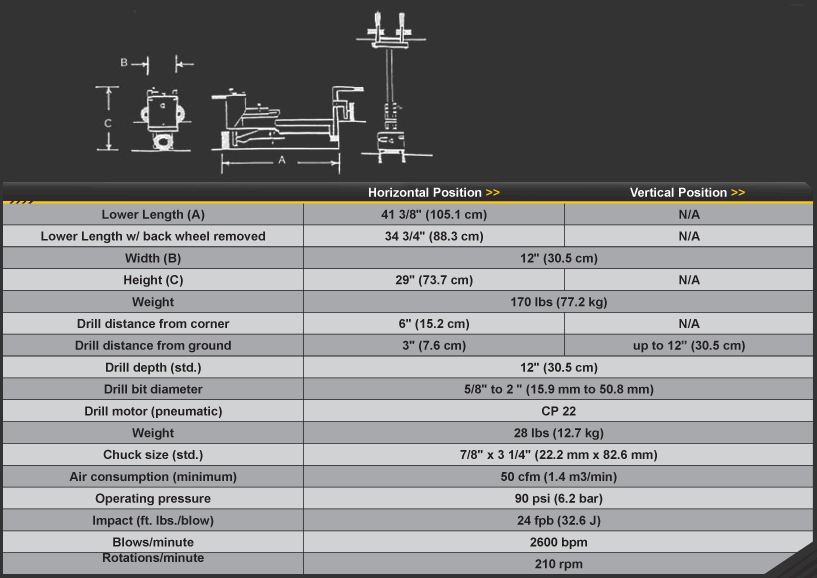

Technical Specs
| Specification | Value |
|---|---|
| Lower Length (A) | Horizontal41 3/8" (105.1 cm)VerticalN/A |
| Lower Length w/ back wheel removed | Horizontal34 3/4" (88.3 cm)VerticalN/A |
| Width (B) | 12" (30.5 cm) |
| Height (C) | Horizontal29" (73.7 cm)VerticalN/A |
| Weight | 170 lbs (77.2 kg) |
| Drill distance from corner | Horizontal6" (15.2 cm)VerticalN/A |
| Drill distance from ground | Horizontal3" (7.6 cm)Verticalup to 12" (30.5 cm) |
| Drill depth (std.) | 12" (30.5 cm) |
| Drill bit diameter | 5/8" to 2" (15.9 mm to 50.8 mm) |
| Drill motor (pneumatic) | CP 22 |
| Weight | 28 lbs (12.7 kg) |
| Chuck size (std.) | 7/8" x 3 1/4" (22.2 mm x 82.6 mm) |
| Air consumption (minimum) | 50 cfm (1.4 m3/min) |
| Operating pressure | 90 psi (6.2 bar) |
| Impact (ft. lbs./blow) | 24 fpb (32.6 J) |
| Blows/minute | 2600 bpm |
| Rotations/minute | 210 rpm |
