E-Z Drill
65B Drill Rig

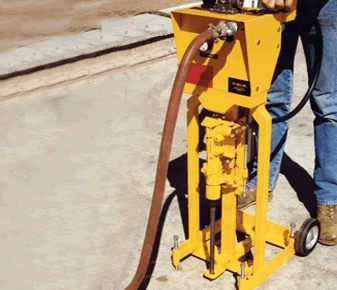

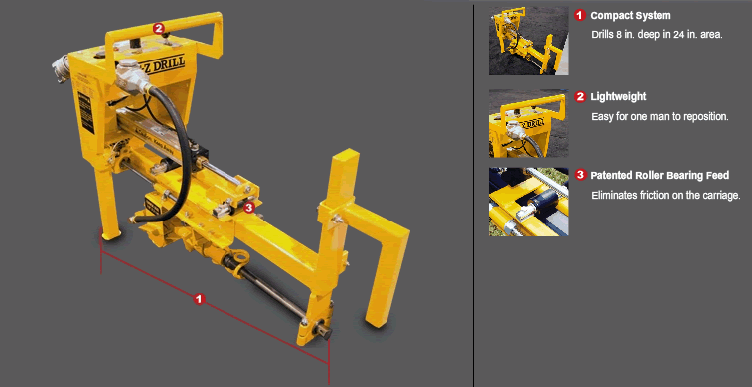

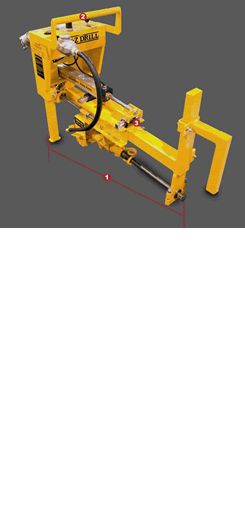

Designed to replace the electric hammer drill, the Model 65B will provide fast and accurate doweling in compact areas. The smallest automated feed system manufactured by E-Z Drill, the 65B is capable of drilling a 1/2 in. to 7/8 in. (12.7 mm to 22.2 mm) diameter hole a maximum of 8 in. (203.2 mm) deep in a 24 in. (609.6 mm) area. Utilizing the CP 9C rock drill this model only requires 20 CFM (0.6 m3/min) for operation.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.

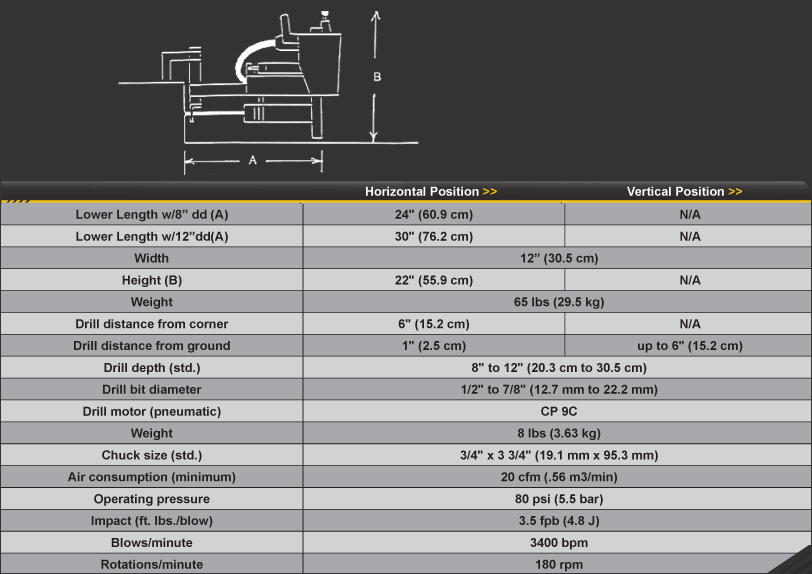

Technical Specs
| Specification | Value |
|---|---|
| Lower Length w/8" dd (A) | Horizontal24" (60.9 cm)VerticalN/A |
| Lower Length w/12" dd (A) | Horizontal30" (76.2 cm)VerticalN/A |
| Width | 12" (30.5 cm) |
| Height (B) | Horizontal22" (55.9 cm)VerticalN/A |
| Weight | 65 lbs (29.5 kg) |
| Drill distance from corner | Horizontal6" (15.2 cm)VerticalN/A |
| Drill distance from ground | Horizontal1" (2.5 cm)Verticalup to 6" (15.2 cm) |
| Drill depth (std.) | 8" to 12" (20.3 cm to 30.5 cm) |
| Drill bit diameter | 1/2" to 7/8" (12.7 mm to 22.2 mm) |
| Drill motor (pneumatic) | CP 9C |
| Weight | 8 lbs (3.63 kg) |
| Chuck size (std.) | 3/4" x 3 3/4" (19.1 mm x 95.3 mm) |
| Air consumption (minimum) | 20 cfm (.56 m3/min) |
| Operating pressure | 80 psi (5.5 bar) |
| Impact (ft. lbs./blow) | 3.5 fpb (4.8 J) |
| Blows/minute | 3400 bpm |
| Rotations/minute | 180 rpm |
