E-Z Drill
240B Drill Rig

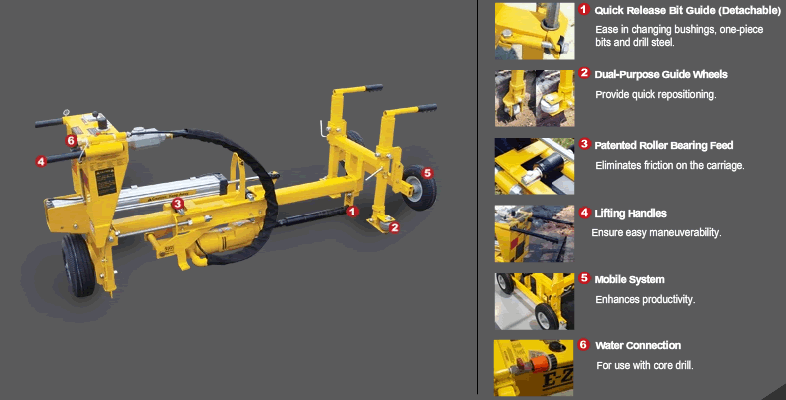

The 240B takes concrete drilling and doweling to a whole new level. Equipped with the standard features of our model 210B, the 240B is
a “combo” drill system that allows you to go from rock drilling to core drilling by simply changing out the bit guide and motor. It eliminates
the need for separate drilling systems and provides even more versatility on the jobsite.
Totally pneumatic, the core drill utilizes a three-speed motor (400, 900, and 1,600 rpm) and requires a minimum of 77 CFM for operation,
compared to the standard rock drill configuration that requires 100 CFM. With the ability to core and drill holes from 5/8-inch diameter up to 2-1/2inches,
and drill up to 18 inches deep the 240B is ideal for standard rock drilling projects, as well as core drilling applications.
Both rock and core drill motors/bit guides come standard.
Your BEST price is just a call away.
Adds the complete tool shown above—not an individual replacement part. Add more tools to build one quote request, then review your quote list.
1-800-241-9669
Need help with a model or part? Talk to Mining Auger & Tool Works.

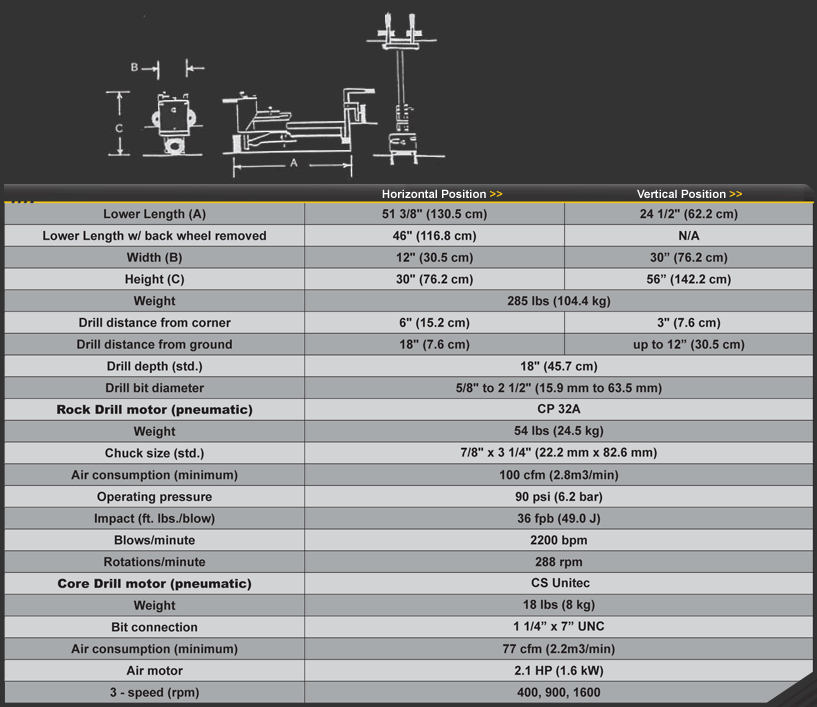

Technical Specs
| Specification | Value |
|---|---|
| Lower Length (A) | Horizontal51 3/8" (130.5 cm)Vertical24 1/2" (62.2 cm) |
| Lower Length w/ back wheel removed | Horizontal46" (116.8 cm)VerticalN/A |
| Width (B) | Horizontal12" (30.5 cm)Vertical30" (76.2 cm) |
| Height (C) | Horizontal30" (76.2 cm)Vertical56" (142.2 cm) |
| Weight | 285 lbs (104.4 kg) |
| Drill distance from corner | Horizontal6" (15.2 cm)Vertical3" (7.6 cm) |
| Drill distance from ground | Horizontal18" (7.6 cm)Verticalup to 12" (30.5 cm) |
| Drill depth (std.) | 18" (45.7 cm) |
| Drill bit diameter | 5/8" to 2 1/2" (15.9 mm to 63.5 mm) |
| Rock Drill motor (pneumatic) | CP 32A |
| Weight | 54 lbs (24.5 kg) |
| Chuck size (std.) | 7/8" x 3 1/4" (22.2 mm x 82.6 mm) |
| Air consumption (minimum) | 100 cfm (2.8 m3/min) |
| Operating pressure | 90 psi (6.2 bar) |
| Impact (ft. lbs./blow) | 36 fpb (49.0 J) |
| Blows/minute | 2200 bpm |
| Rotations/minute | 288 rpm |
| Core Drill motor (pneumatic) | CS Unitec |
| Weight | 18 lbs (8 kg) |
| Bit connection | 1 1/4" x 7" UNC |
| Air consumption (minimum) | 77 cfm (2.2 m3/min) |
| Air motor | 2.1 HP (1.6 kW) |
| 3 - speed (rpm) | 400, 900, 1600 |
